135R13D

SKU: 135R13D

In Stock

Model Number: 135R13D

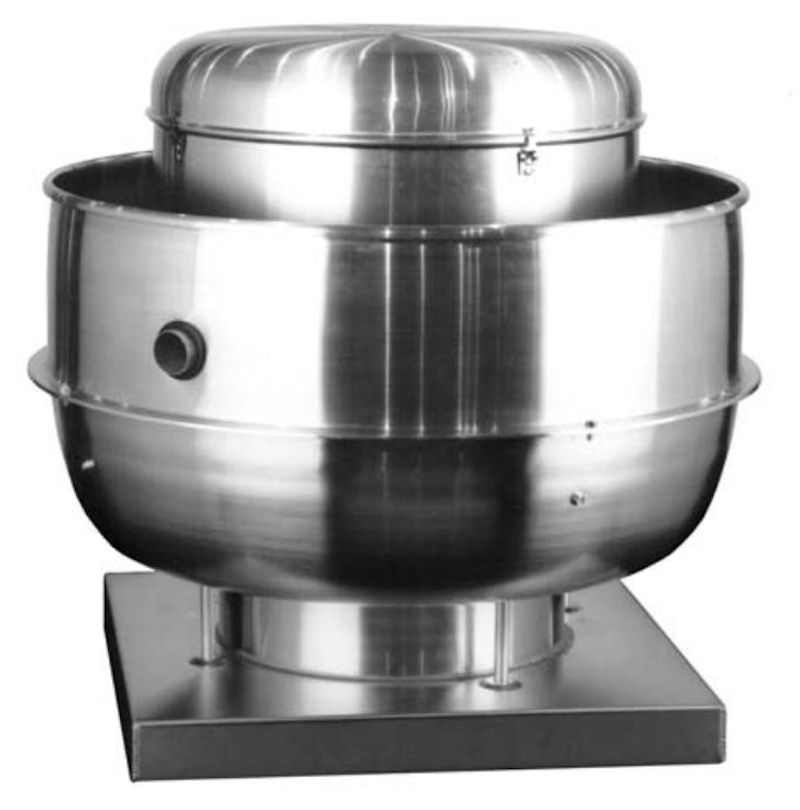

Spun aluminum roof or wall mounted, direct driven, upblast centrifugal exhaust ventilator.  Fan shall be listed by Underwritters Laboratories (UL 705).  The spun aluminum structural components shall be constructed of minimum 16 gauge marine alloy aluminum, bolted to a rigid aluminum support structure.   The motor shall be enclosed in a weather-tight compartment, separated from the exhaust airstream. Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

Attributes

Base: 20″

Motor: 1/2 HP 115 volt / 1 phase 2 speed 1300/1550 RPM

Drive: Direct

CFM  Range: 2002 CFM @ 0″ to 1640 CFM @ 3/4″ static pressure

Loren Cook Model #: 135 ACRUD 135R13D

Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
