Model Number: 120R13D

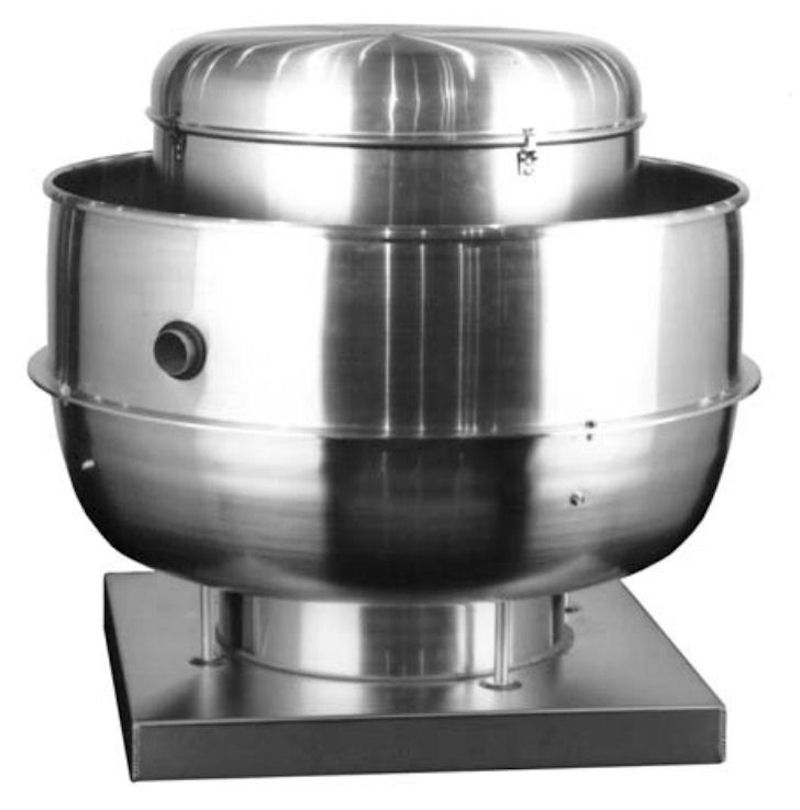

Spun aluminum roof or wall mounted, direct driven, upblast centrifugal exhaust ventilator. Fan shall be listed by Underwritters Laboratories (UL 705). The spun aluminum structural components shall be constructed of minimum 16 gauge marine alloy aluminum, bolted to a rigid aluminum support structure. The motor shall be enclosed in a weather-tight compartment, separated from the exhaust airstream. Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.
Motor: 1/4 HP 115 volt / 1 phase 2 speed 1300/1550 RPM
CFM Range: 1406 CFM @ 0″ to 1073 CFM @ 3/4″ static pressure
Loren Cook Model #: 120 ACRUD 120R13D
Call us for a custom configure. 800.333.5151
