22-2425

SKU: 22-2425

In Stock

Model Number: 22-2425

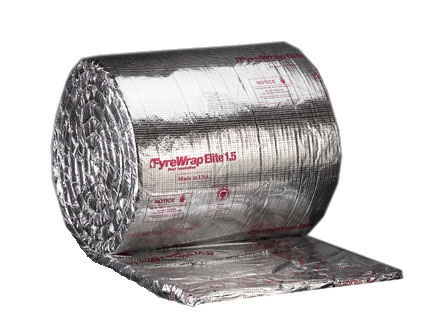

Fyrewrap Elite 1.5 duct insulation is a single layer (UL 1978 / pre-2006 IMC) or two-layer (IMC 2006, 2009, & 2012) flexible enclosure for one- and two- hour rated commercial kitchen grease ducts.
Single Layer:
This slim, compact design offers the lightest system available and results in significant weight, space and labor savings when compared to traditional fire-rated shafts or competitive wrap systems. The system was tested per UL 1978 and complies with pre-2006 editions of the International Mechanical Code (IMC).
Two Layer:
FyreWrap Elite 1.5 Duct Insulation is tested per ASTM E2336 and is acceptable as an alternate to a traditional fire-rated shaft. Installed as a two-layer system, FyreWrap Elite 1.5 complies with NFPA 96 and the 2006, 2009 and 2012 Editions of the International Mechanical Code (IMC) and Uniform Mechanical Code (UMC).

Attributes

Length: 25′ 0″



Width: 24″
Thickness: 1.5″
Normal Density: 6pcf
Standard Product Form Scrim Encapsulated
Manufacturer: Unifrax



Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
