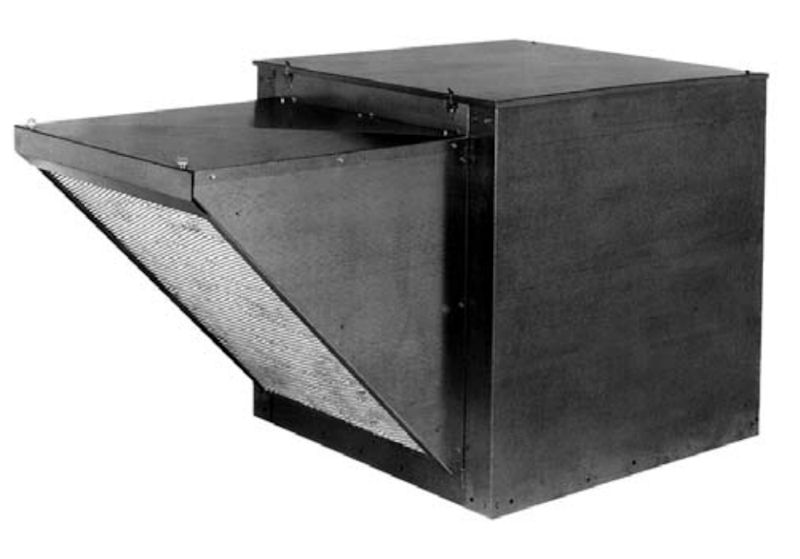

KSPD122-127

SKU: KSPD122-127

In Stock

Model Number: KSPD122-127

-Totally enclosed galvanized cabinet with hooded, filtered intake

-Top cap quick release latches
-Permanent, one inch, washable, aluminum filters
Vibration isolators

-Insulated top cover provides weather protection for the motor and drive components
-Quick release latches provide tool-free access for inspection and maintenance of motor and drive components
-Blower assembly supported by rubber isolators to reduce noise and vibration level transmitted to the supporting structure
-Integral 3″ skirt with pre-punched mounting holes for ease of installation
-Intake hood with 1″ permanent, washable aluminum filters standard

Attributes

Base: 32 1/4″

Max Watts/BHP Range: 293 – 550/.467
KSPD122: 916 CFM @ 0.25″ static pressure
KSPD123: 1071 CFM @ 0.25″ static pressure
KSPD124: 1159 CFM @ 0.25″ static pressure
KSPD125: 1374 CFM @ 0.25″ static pressure
KSPD126: 1504 CFM @ 0.25″ static pressure
KSPD127: 1591 CMF @ 0.25″ static pressure
Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
