Food Truck Ventilation Equipment

101V15D

SKU: 101V15D

In Stock

Model Number: 101V15D

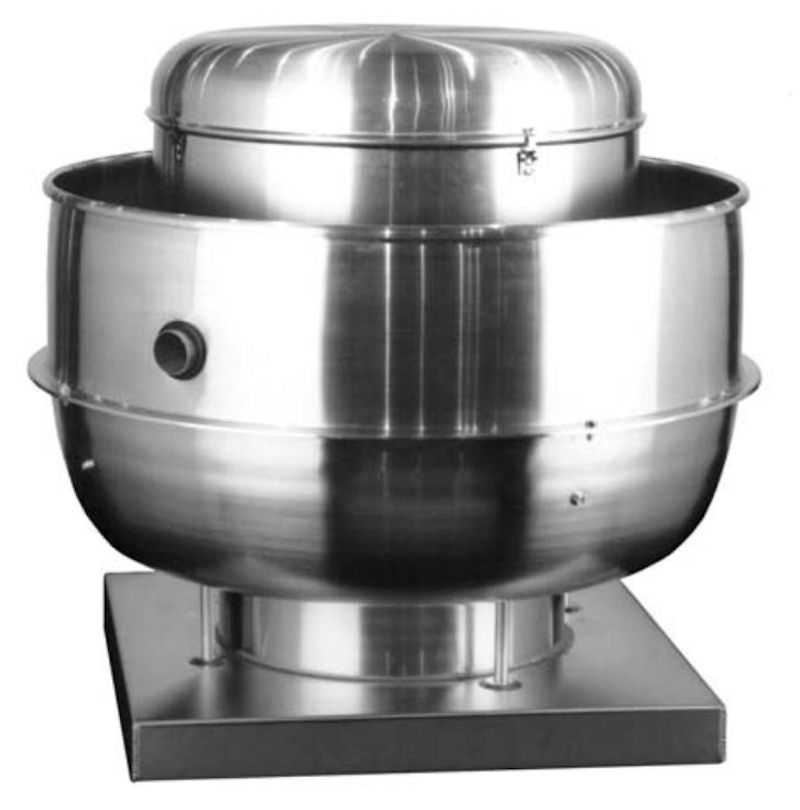

Spun aluminum roof or wall mounted, direct driven, upblast centrifugal exhaust ventilator.  Fan shall be listed by Underwritters Laboratories (UL 762).  The spun aluminum structural components shall be constructed of minimum 16 gauge marine alloy aluminum, bolted to a rigid aluminum support structure.   The motor shall be enclosed in a weather-tight compartment, separated from the exhaust airstream. Wheel shall be centrifugal backward inclined, constructed of 100% aluminum, including a precision machined cast aluminum hub. Motor shall be heavy duty type with permanently lubricated sealed ball bearings and furnished at the specified voltage, phase and enclosure.

Attributes

Base: 18″

Motor: 1/8 HP 115 volt / 1 phase

Drive: Direct

CFM Range: 864 CFM @ 0″ to 484 CFM @ 5/8″ static pressure

Loren Cook Model #: 101 VCRD 101V15D

Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
