135QMX

SKU: 135QMX

In Stock

Model Number: 135QMX

Loren Cook model number “135QMX.”

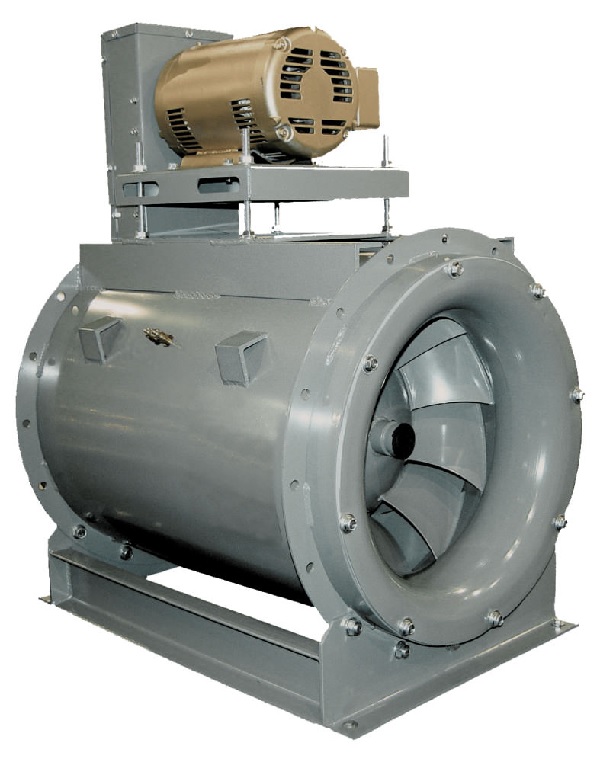

Belt drive inline exhaust fan for grease applications

UL 762 Listed

Mixed Flow Inline exhaust fan made with high efficiency mixed flow wheel.  Powder coated housing, aerodynamic vanes, inlet and outlet integral collars, adjustable motor plate, belt guard, and adjustable feet.

Attributes

1/2 to 5 HP / 1 or 3 Phase

UL 762 Listed

CFM Ranges
  1. 3/4 HP:  3100 CFM @ 0.125″ to 1550 CFM @ 1.375″
  2. 1 HP:  3500 CFM @ 0.125″ to 1715 CFM @ 1.75″
  3. 1-1/2 HP:  4325 CFM @ 0.125″ to 1800 CFM @ 2.375″
  4. 2 HP:  4950 CFM @ 0.125″ to 2000 CFM @ 2.875″
  5. 3 HP:  5850 CFM @ 0.125″ to 2625 CFM @ 3.625″
  6. 5 HP: 6125 CFM @ 0.125″ to 3130 CFM @ 5.125″

Max RPM:  3295

Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
