SKU: S30-1022

In Stock

Model Number: S30-1022

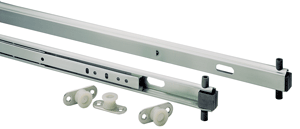

S30 series zinc plated steel full extension drawer slide. 22″ (550mm) length with nylon rollers and a 75lb (40kg) load capacity. Non-handed, removable (with rollers), rubber stops.


Mounting Type: Side
Space Required: 3/4″ (19mm)
Drawer Extension: Full Travel
Material: Zinc Plated Steel
Action: Nylon or Non-Corrosive Metal Rollers
Note: Load Rating Based On 18″(450mm) Slide Length
Height: 2-1/32″ (52mm)

Need a custom size?
Call us for a custom configure. 800.333.5151
