Hood Installation Accessories

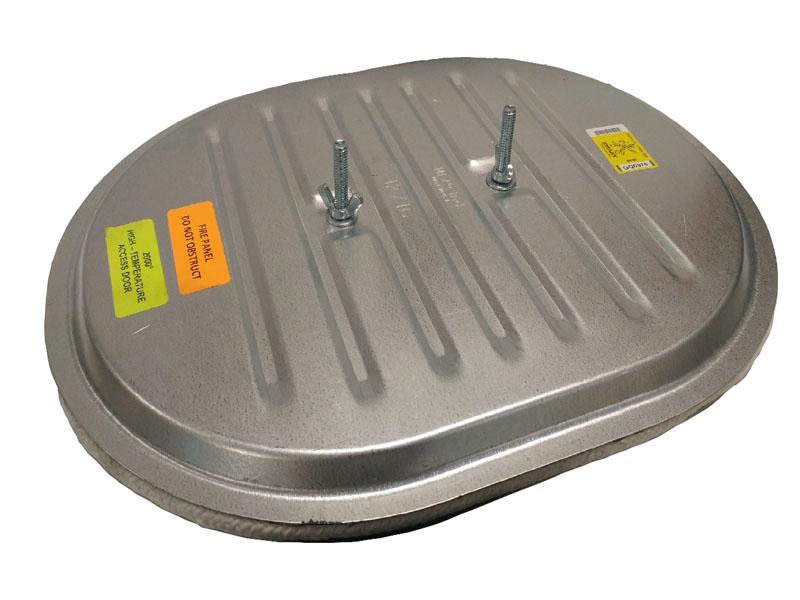

16" x 12" Hi-Temp Grease Duct Access Panel

SKU: 22-16X12

In Stock

Model Number: 22-16X12

Access Panel, Hi-Temp, 16″ x 12″ with 1.5″ studs.  Constructed of two layers of stamped, hot dipped galvanized steel and one 16 gauge black iron backing plate for ultimate safety and durability.

Hi-temperature ceramic fiber gasket (2000¬∞ F max) is permanently bonded to the outside panel of the access door to eliminate leakage.  Zinc plated conical springs between the inner and outer plates to facilitate opening.
Zinc coated wing nuts are easily turned by hand.  No measuring needed, self-adhesive mounting template provided.
 Easy to install.  Meets NFPA #96 standards.

Attributes

Height: 16″

Width: 12″
Case Quantity: 5
Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
