Hood Installation Accessories

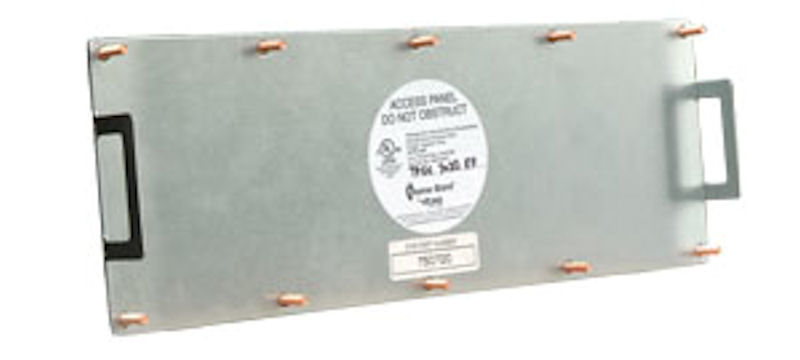

10" x 23" Flat Access Panel UL Fire Rated
Model Number: 750720
Flame Gard UL fire rated flat access doors.
Heavy-duty 16 gauge steel construction.
Back frame reinforces duct cut-out.
Gasket rated to 2300 degree F (1260 degree C) for fire tight seal.
Easy to install and easy to clean.
Available with extended 4″ (102mm) studs to accommodate fire wrap for flat duct applications. Order with suffix (-4).
Back Frame Outside Dim: 10″ x 23″ (254mm x 584mm)
Front Panel Outside Dim: 10″ x 23″ (254mm x 584mm)
Panel Width: 1/2″ (13mm)
Stud Height: 1″ (25mm)
Hole Size: 7″ x 20″ (178mm x 508mm)
Call us for a custom configure. 800.333.5151
