Hood Installation Accessories


SKU: 22-750723

In Stock

Model Number: 750723

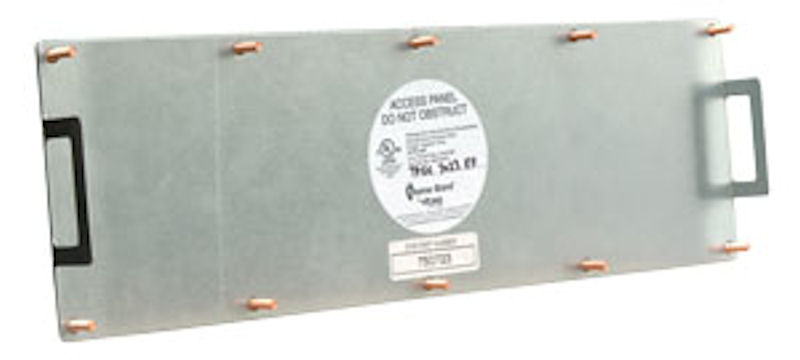

Flame Gard UL fire rated flat access doors.
Heavy-duty 16 gauge steel construction.
Back frame reinforces duct cut-out.

Gasket rated to 2300 F (1260 C) for fire tight seal.

Easy to install and easy to clean.

Available with extended 4″ (102mm) studs to accommodate fire wrap for flat duct applications. Order with suffix (-4).


Back Frame Outside Dim: 7″ x 23″ (178mm x 584mm)

Front Panel Outside Dim: 7″ x 23″ (178mm x 584mm)

Panel Width: Flat

Stud Height: 1″ (25mm)

Hole Size: 5-1/2″ x 21-1/2″ (140mm x 546mm)

Mounting Studs: 10
Need a custom size?
Call us for a custom configure. 800.333.5151
To Order Call us at 800.333.5151 or inquire below
